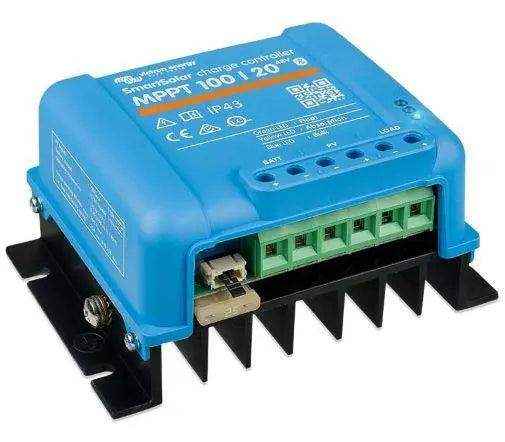

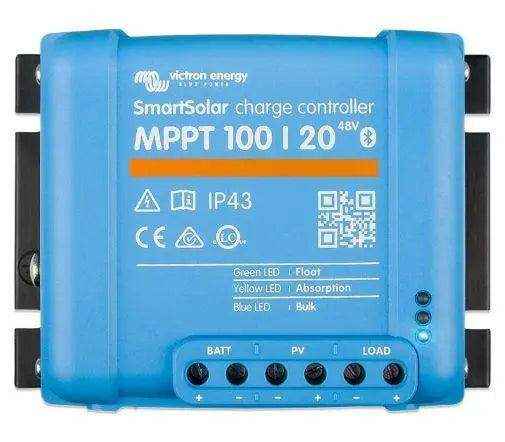

Victron Smart Solar Charge Controller Mppt 100V 20A 48V also Suitable for 12v and 24V
2 reviews
$139.00$239.00
We currently have 1 in stock.
2 reviews
Victron SmartSolar 100 VOC, 20 Amp MPPT solar panel charge controller suitable for 12, 24 and 48-volt battery systems (including Lithium) with Bluetooth.
Battery voltage: 48V, 24v, 12v
Rated charge current: 20A
Nominal PV power, 12V: 290w.
Nominal PV power, 24V: 580w
Nominal PV power, 48V: 1160W
Max. PV short circuit current: 20A
Automatic load disconnect: Yes
Max. PV open circuit voltage: 100V
Peak efficiency: 98%
Self-consumption: 12V: 25 mA , 24V: 15 mA
Charge voltage 'absorption': 14,4V / 28,8V (adjustable)
Charge voltage 'float': 13,8V / 27,6V (adjustable)
Charge algorithm: multi-stage adaptive
Temperature compensation: -16 mV / °C resp. -32 mV / °C
Max. continuous load current: 15A
Protection: Battery reverse polarity (fuse) / Output short circuit / Over temperature
Operating temperature: -30 to +60°C (full rated output up to 40°C)
Humidity: 95%, non-condensing
MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels.
The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

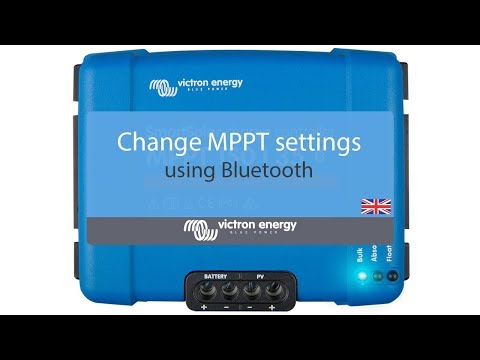

Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available:
Solar Gauge – Realtime power output
Battery Voltage
Battery Current
Battery State
Load Output [100/20 and smaller]
Load current – shows the current being drawn by appliances
History Analysis
Various Settings
Colour
Blue (RAL 5012)

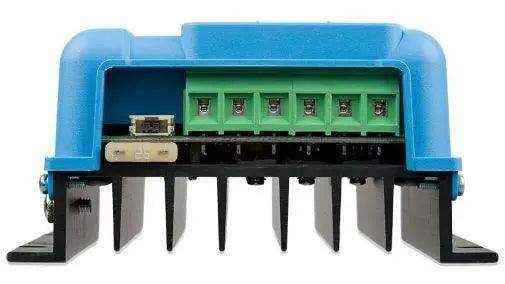

Power terminals
6 mm² / AWG10
Protection category
IP43 (electronic components),
IP22 (connection area)
Weight
0,5 kg
Dimensions (h x w x d)
100 x 113 x 60 mm
