SPP040901200

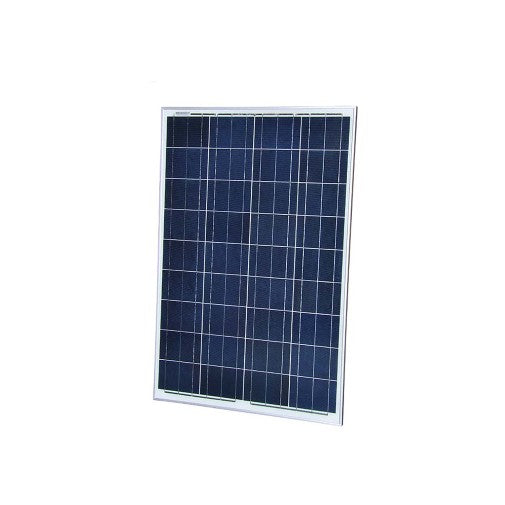

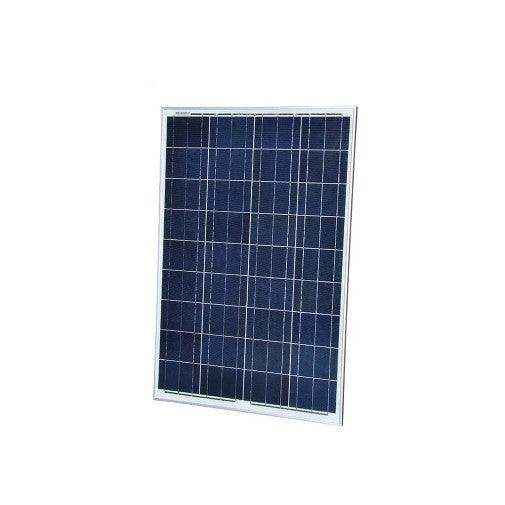

Victron 12v 90W Poly Solar Panel 780mm x 668mm x 30mm

This product is on order with our supplier (if no add to cart button is available, then we are not confident of the suppliers delivery date)

Victron 12V 90W Poly Solar Panel

780MM x 668MM x 30MM (LxWxH) • SERIES 4A • POLYCRYSTALLINE WITH SILVER FRAME

*Note the Victron 12V range of solar panels are suitable for charging 12V battery systems when using a PWM or MPPT controller. The Victron range of SmartSolar regulators would be best suited based on price and quality.

Features:

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multifunctional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminum frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Pre Wired quick-connect system with PV- ST01 connectors
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • Cell type Polycrystalline
  • Number of cells in series 36
  • Nominal power (Watts) 90W
  • Open Circuit Voltage (Volts) 23.44V
  • Maximum Power Voltage (Volts) 19.5V
  • Short Circuit Current (Amps) 4.98A
  • Maximum Power Current (Amps) 4.61A
  • Power (Max.) 90W
  • Temp Range -40 to +85°C
  • Length of cable / connector 900mm / MC4
  • Power Tolerance ±3%
  • Maximum system voltage 1000V
  • Size (LxWxH) 780mm x 668mm x 30mm
  • Weight 6.1kg
  • Warranty Electrical performance
