Enerdrive RCD-GPO Inverter Kit 12volt 400W ...

Enerdrive RCD-GPO Inverter Kit 12 Volt 400W ePOWER Gen2

The Enerdrive ePOWER 400W/12V RCD Inverter Kit Gen2 installs quickly with just six mounting screws and DC power connection, providing a ready-to-use system for versatile AC power needs.

Features

• Compliance with ASNZS 4763-2011 for Safety of Portable Inverters, meeting Work Place Health and Safety requirements for RCD protection effective from July 1, 2013.

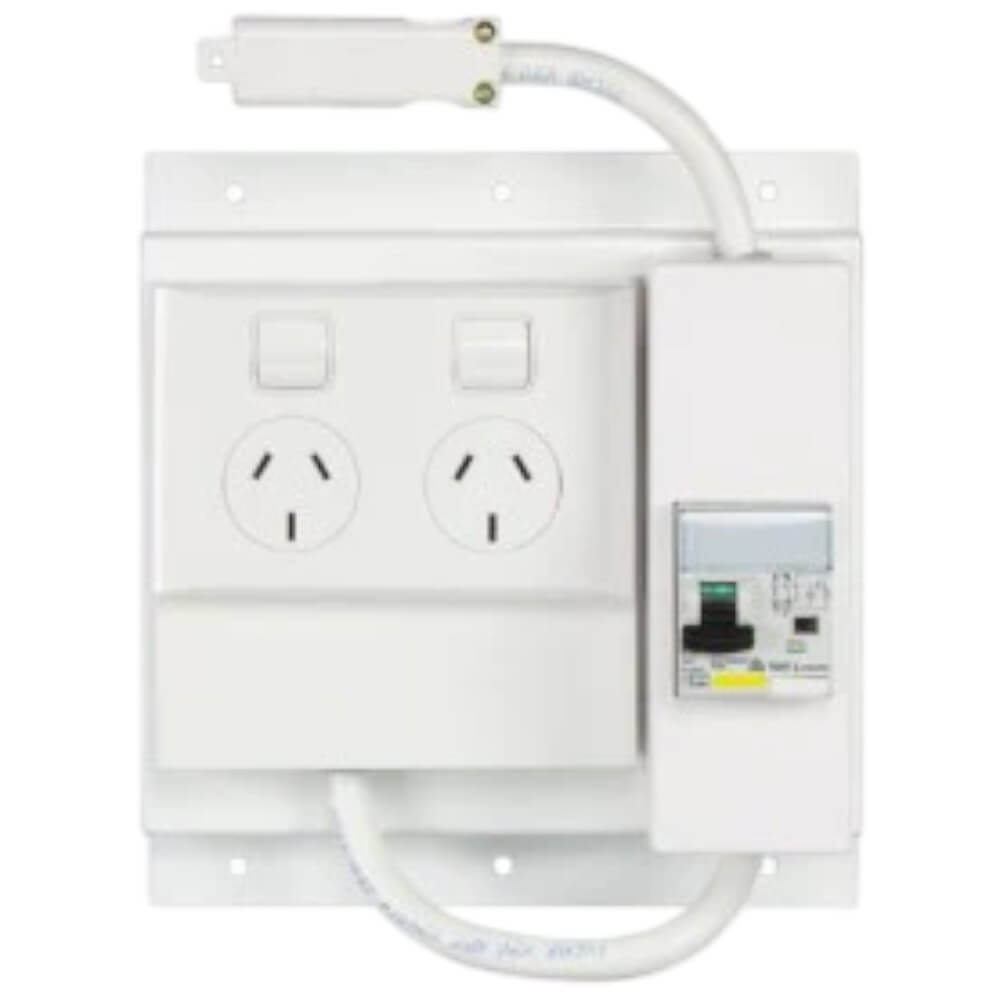

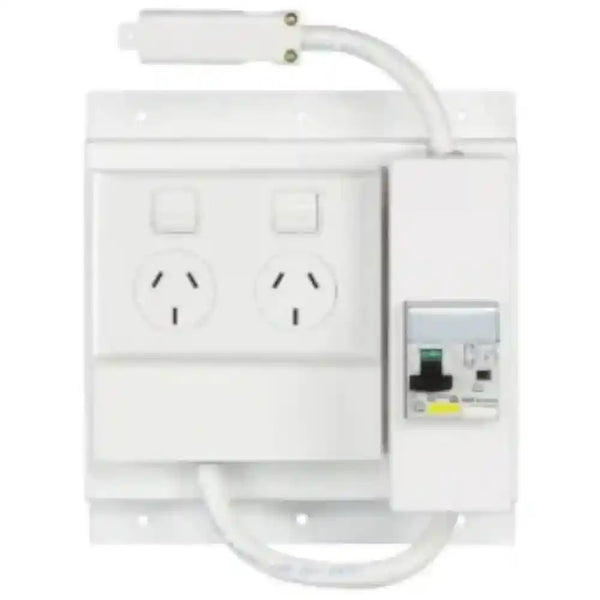

• Plug and Play GPO system allows easy addition of extra AC power points, all double pole, with Type ‘A’ RCDBO and M.E.N protection for safety and regulatory compliance.
• Suitable for a wide range of applications including professional and recreational vehicles such as telecommunications, energy, council, emergency vehicles, caravans, motorhomes, camper trailers, and marine use.
• True sine wave output supports motor loads and sensitive electronics, reducing wear on equipment.
• Audio alarms provide warnings and error codes; automatic shutdown activates on overload, over temperature, or low/high battery voltage conditions.
• High surge capacity (800W peak) supports equipment with high start-up power needs.
• Efficient conversion from 12V DC battery to 230V AC power at 50Hz.
• Heavy-duty DC battery stud connectors ensure secure and reliable connections.
• Includes a 5V USB port (1A) for charging USB devices.

Specifications

• Model: ePOWER 400
• Part Number: RCD-GPO-EP400W
• AC Output Power: 400W continuous
• AC Surge Power (Peak): 800W
• Output Voltage: 230VAC, 50Hz
• Output Waveform: True Sinewave
• Output Socket: 1 double pole outlet
• Nominal DC Input Voltage: 12.5 VDC
• DC Input Voltage Operating Range: 10.5 – 15.5 VDC
• No Load Battery Draw: 0.8 ADC
• Under Voltage Alarm: 11.2 VDC
• Under Voltage Shutdown: 10.5 VDC
• Under Voltage Recovery: 11.8 VDC
• Over Voltage Shutdown: 15.5 VDC
• USB Output: 5V, 1A
• Safety Certification: Meets all required Australian Standards; RCM registered
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5-90% non-condensing
• Maximum Operating Altitude: Up to 3000m above sea level
• Weight: 1.73 kg
• Dimensions (W x L x H): 225 x 410 x 115 mm
• Warranty: 3 Years

Estimated Run Time Examples (Based on Load and Battery Capacity)

• Cordless Phone (5W): approx. 80 hours
• Clock/Radio (8W): approx. 65 hours
• Table Lamp (40W / 60W): approx. 22 / 15 hours
• Freezer 8.8 cu. ft. (80W): approx. 12 hours
• 20" LCD TV (100W): approx. 10.5 hours
• Refrigerator 18 cu. ft. (120W): approx. 8.3 hours
• Microwave mid-size (1000W): approx. 44 minutes
• Coffee Maker (1200W): approx. 35 minutes
• Vacuum Cleaner (1400W): approx. 28 minutes

This inverter kit supports safety requirements on and off the job site, with protection against electrical hazards common in mobile and work environments. The plug and play GPO system allows straightforward expansion of AC power points anywhere in your vehicle or setup. A standalone RCD/GPO unit is available separately for hardwired inverters and combi units.
