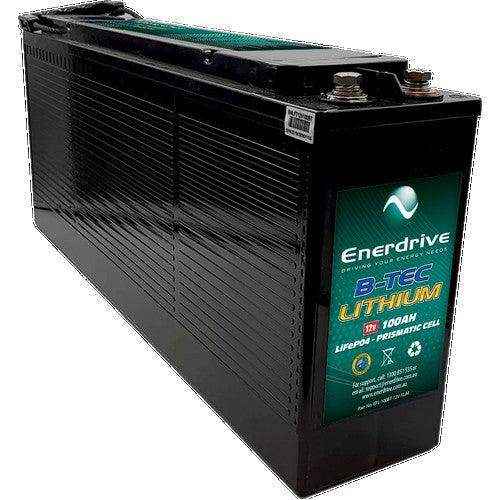

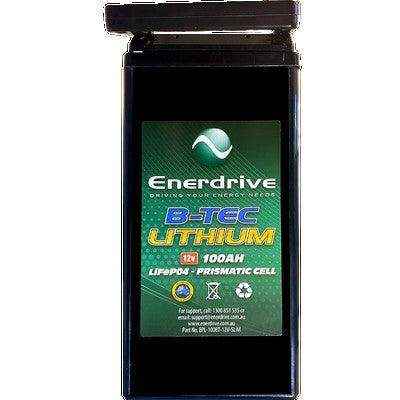

Enerdrive B-Tec Lifep04 12v 100Ah Slimline Lithium Battery

Available in 12v 100Ah, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Key Features:

Battery Specifications: The Enerdrive ePOWER B-TEC Slimline 100Ah/12V LiFePO4 Battery has a nominal voltage of 12.8V and a capacity of 100Ah, with a cycle life of ≥ 2000 cycles at 80% DOD.

Battery Management System: Equipped with an internal BMS that protects against overcharge, over-discharge, over-temperature, and short circuits, optimizing each prismatic cell for safe operation.

Smartphone Monitoring: Includes wireless monitoring technology, allowing users to track battery capacity, voltage, current, state of charge, state of health, individual cell voltage, temperature, cycles, alarms, and event information via a smartphone app.

Size and Weight Advantages: Offers 60% more usable power than AGM batteries, is nearly 50% lighter, and 30% smaller. Dimensions are 551mm (L) x 109mm (W) x 239mm (H), with a weight of approximately 12.5 kg.

Versatility and Usage: Ideal for camper trailers, 4WDs, caravans, small watercraft, and low-power communication sites. The battery can be paralleled with another of the same size for increased capacity, but no more than two should be connected. The 100Ah Slimline battery can accept a maximum inverter capacity of 1000W.

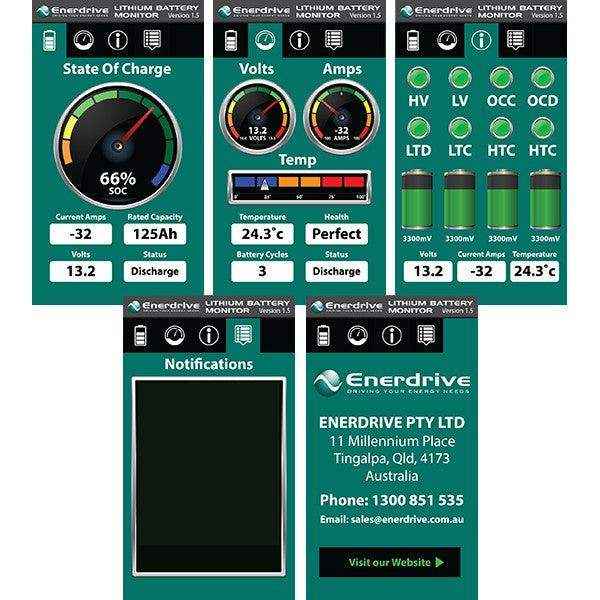

Smart Phone Monitoring System

The Enerdrive Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature and short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium = 320Ah AGM
• 300Ah Lithium = 480Ah AGM

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

Please Note; The B-TEC Slimline battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The 100Ah Slimline battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
