ECPHotBox240-MINICONTROL
Couldn't load pickup availability

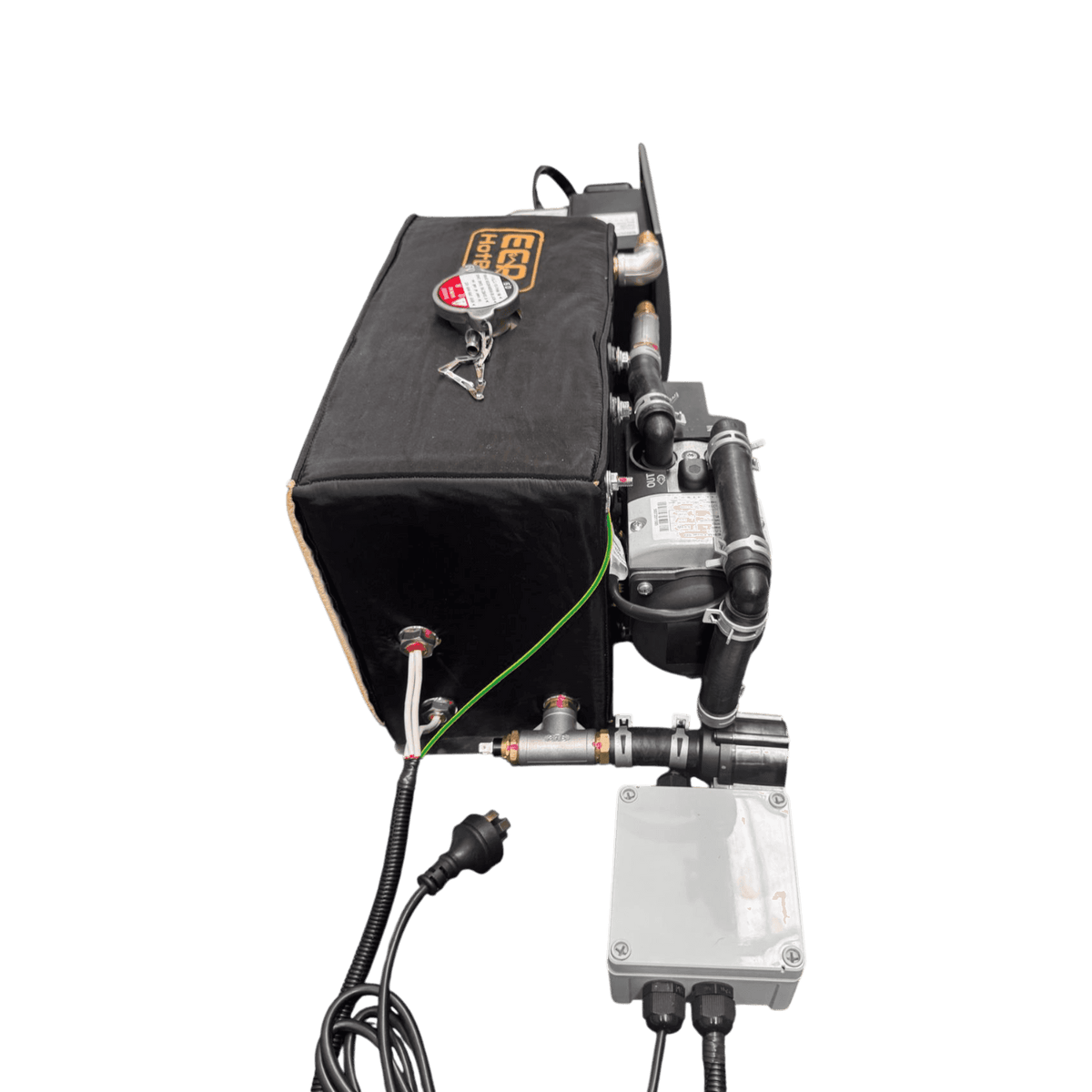

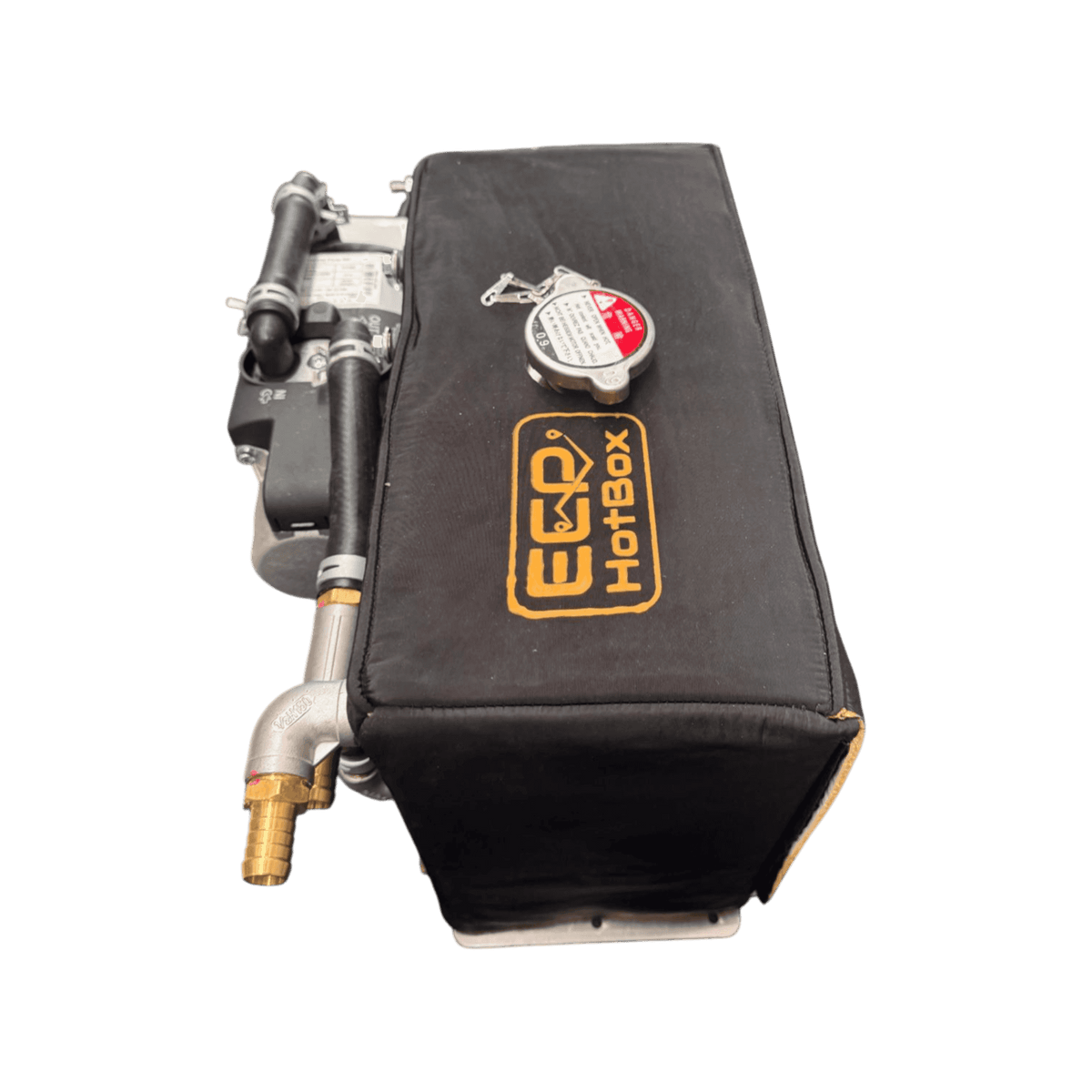

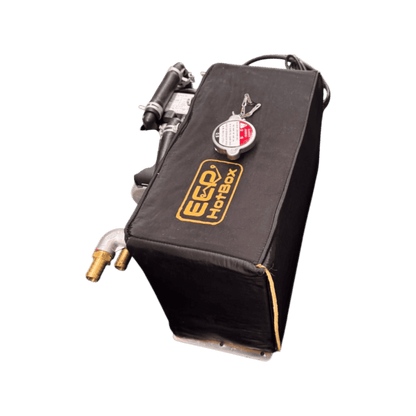

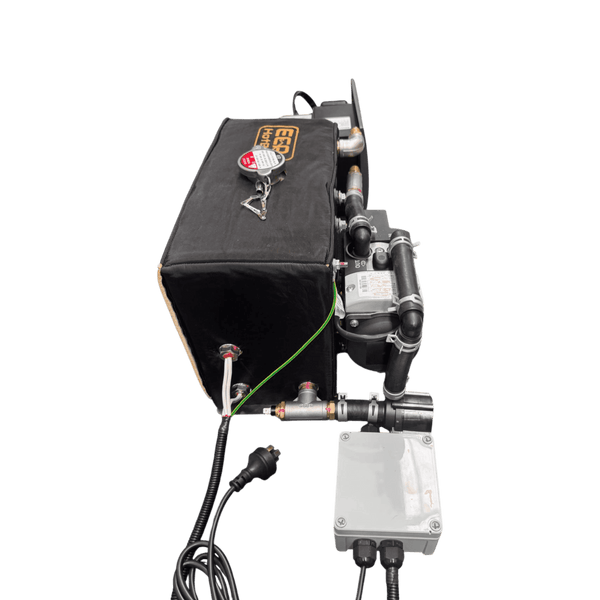

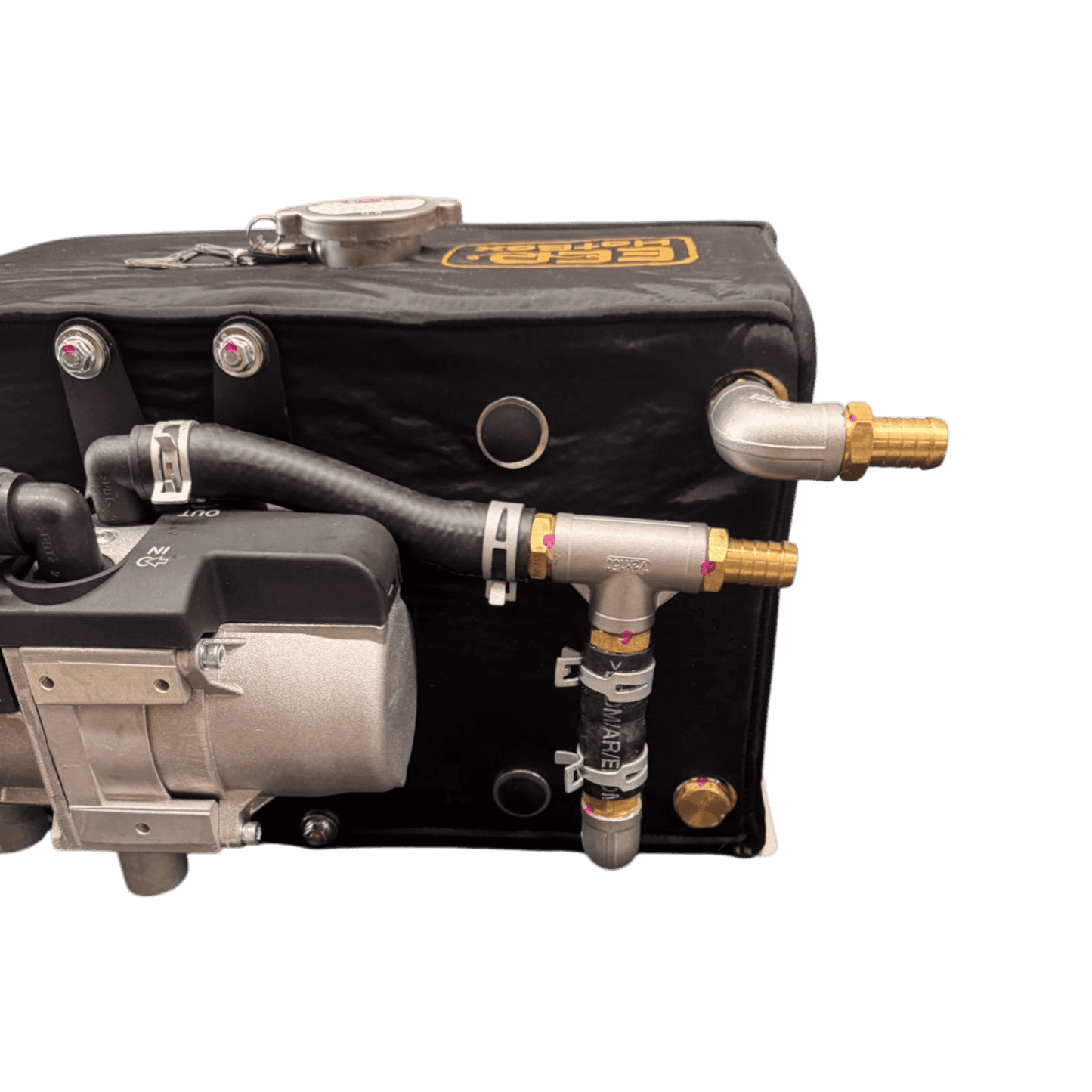

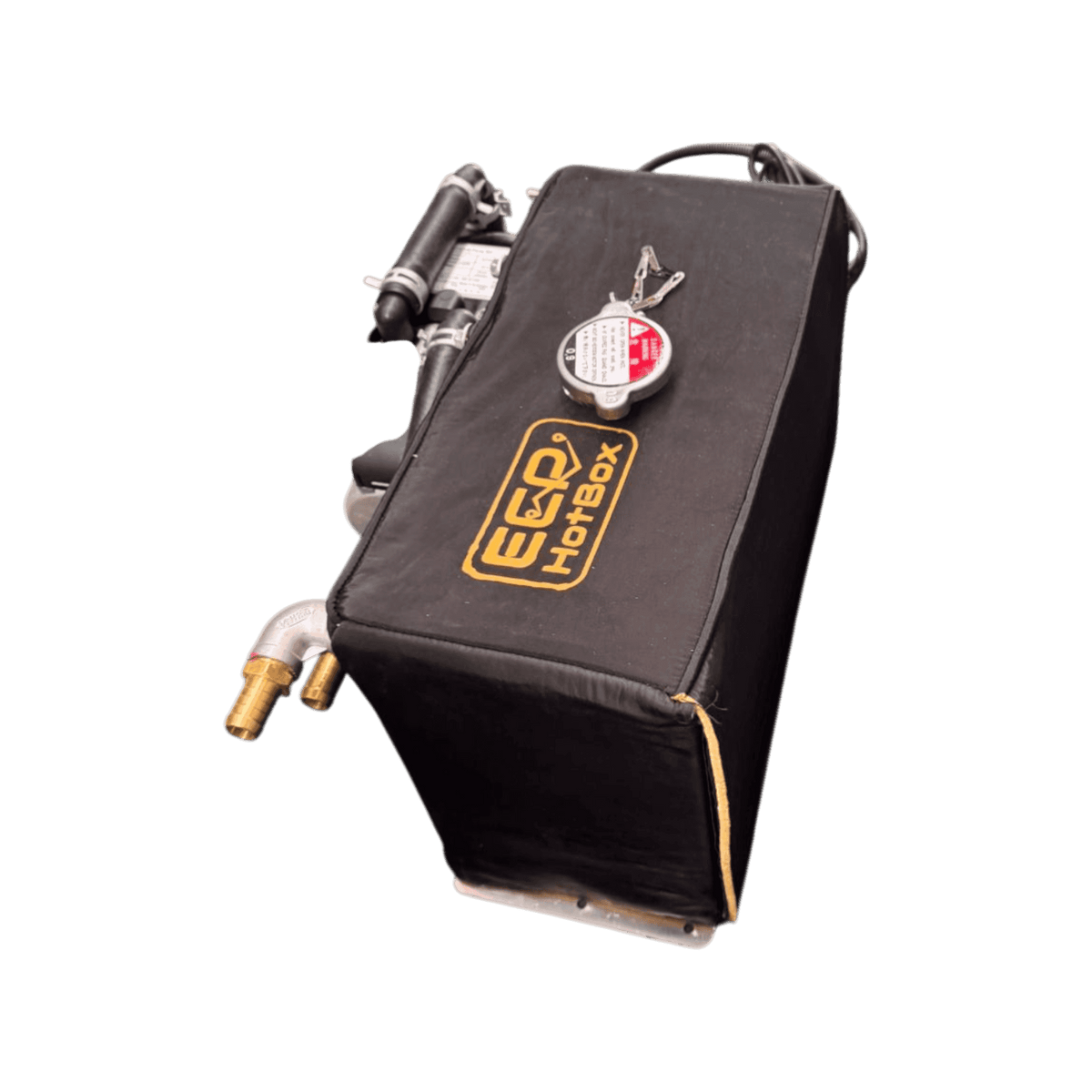

ECP Autoterm 5kw HotBox HeatPak Hydronic Water Heater with 1200w 240volt

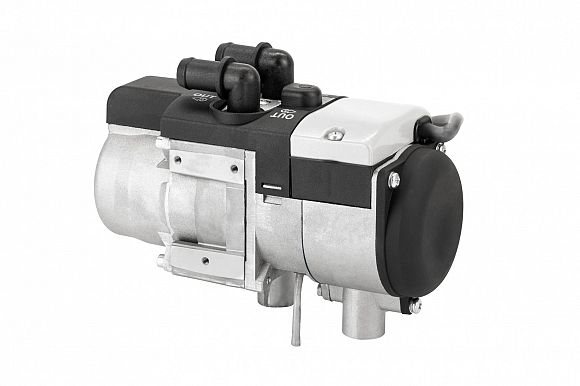

- Autoterm 5kw Flow 5D Diesel Water heater

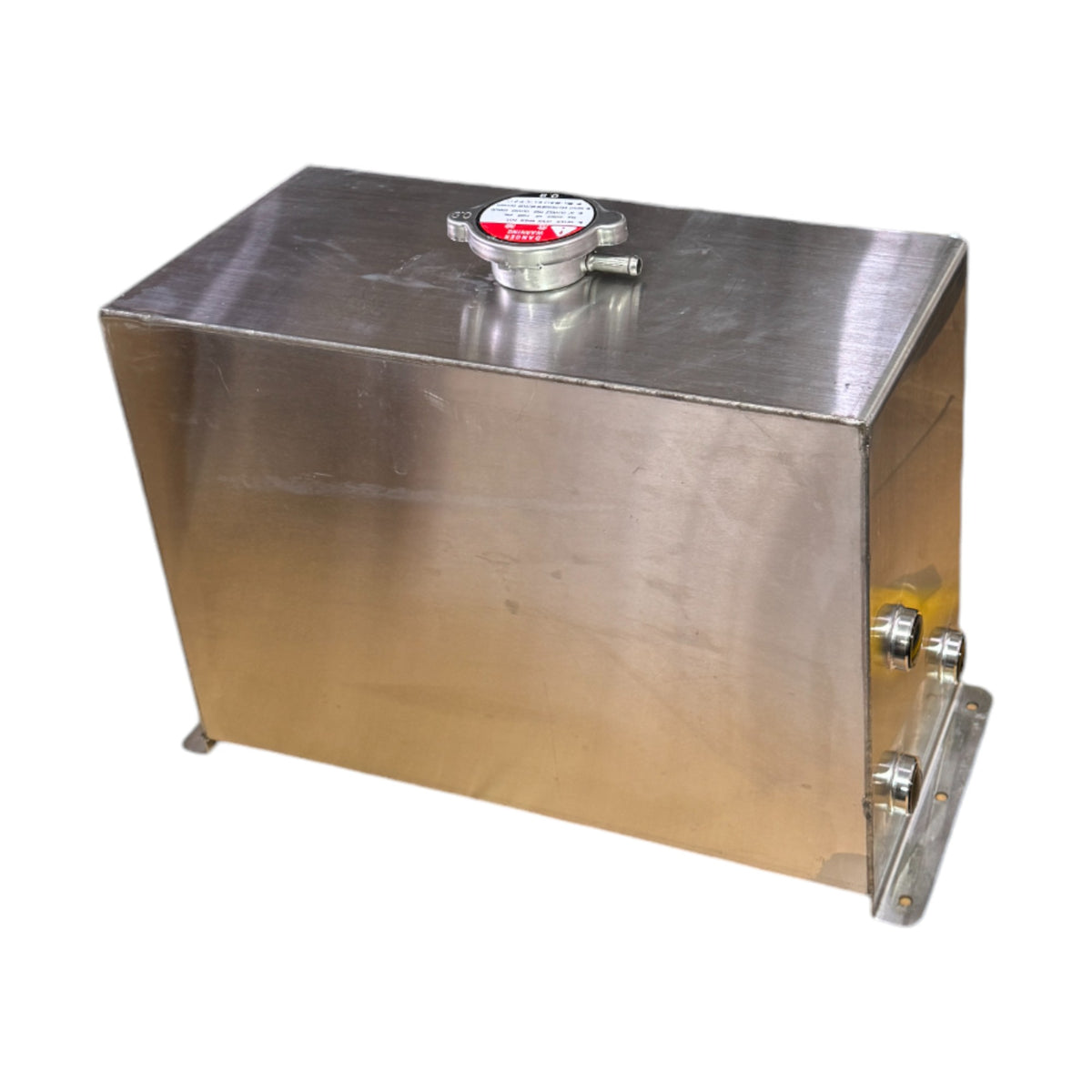

- ECPHotBox Hydronic Tank 15litre with internal Plate Heat Exchanger
- 2 x 600w (1200w) 240volt Thermostatically Controlled Elements with Push Button Control
- Autoterm Push Control

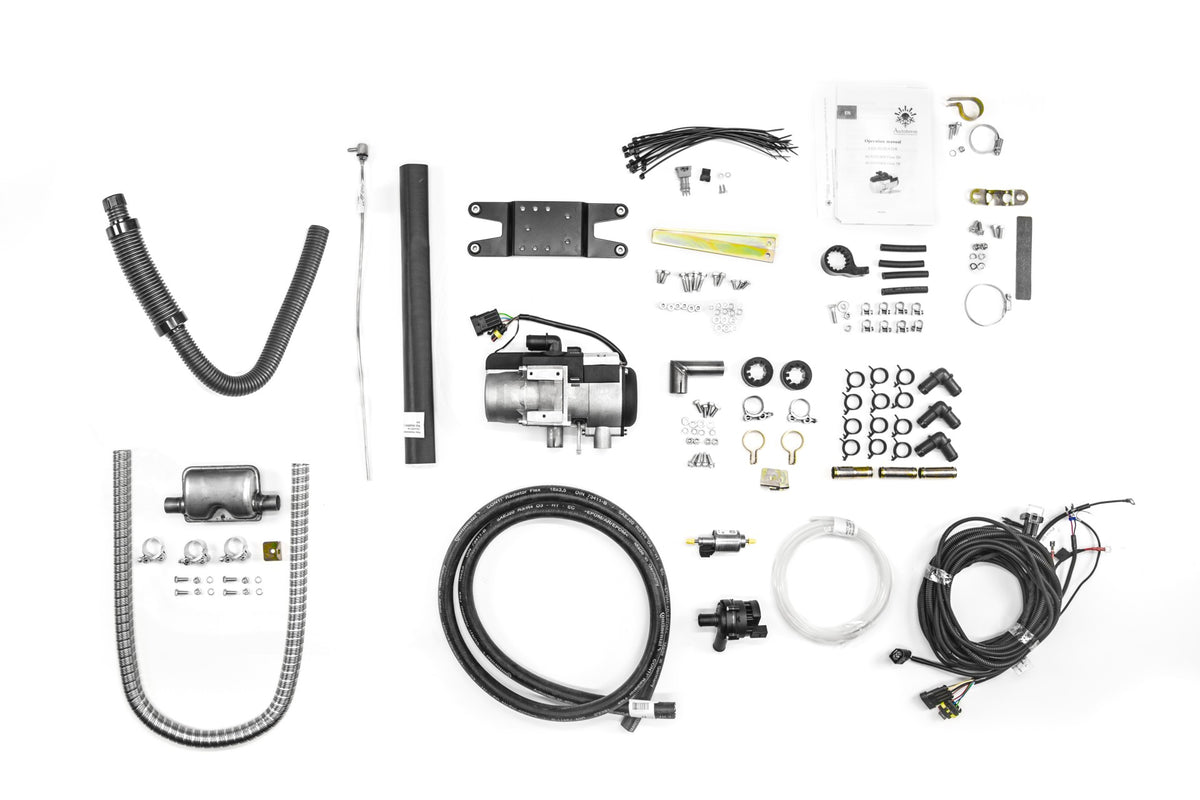

- Full Install Kit - please read installation guide for more details

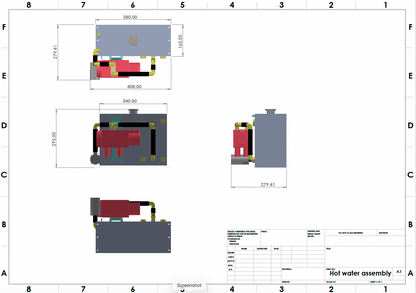

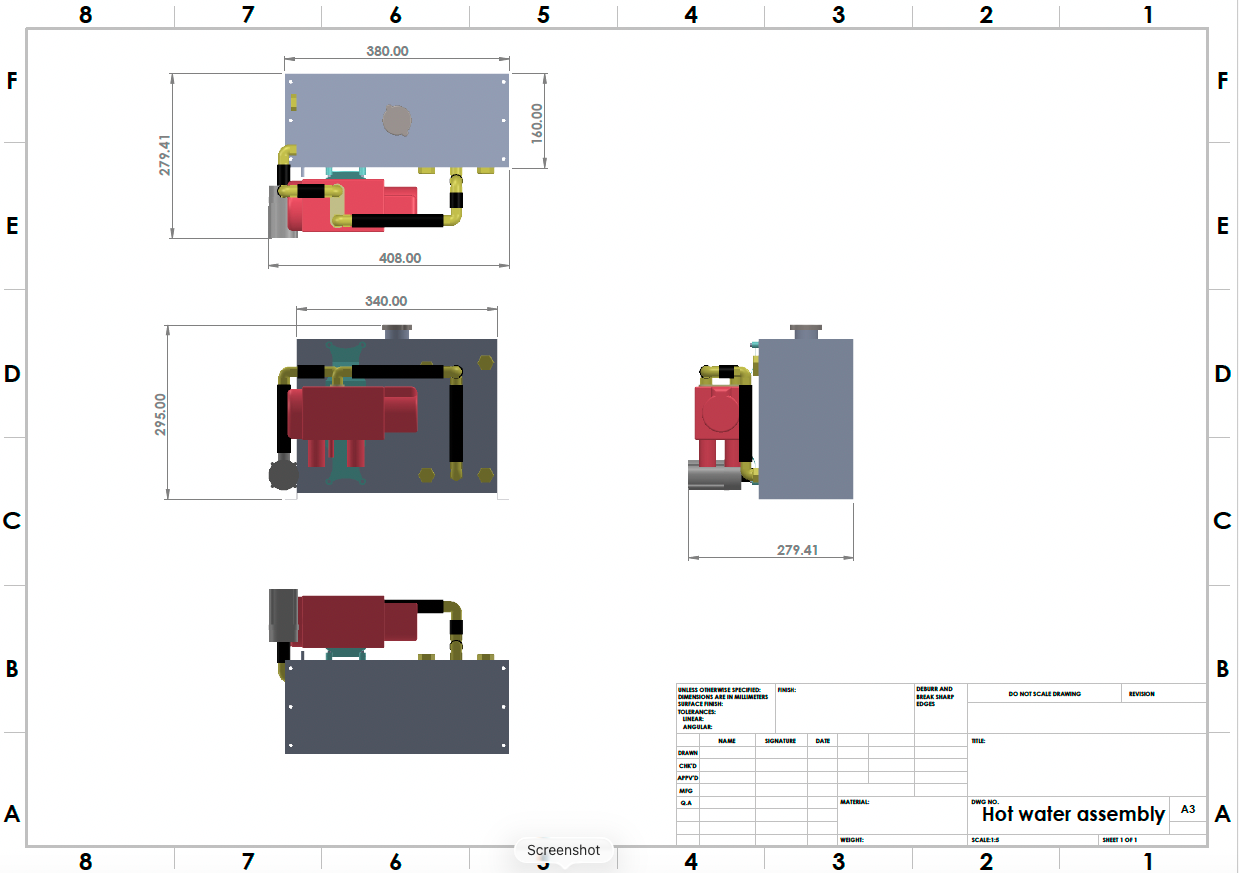

Dimensions of Tanks and Liquid heater unit combined:
- 280mm Width
- 295mm Height
- 408mm Length
A compact, reliable system to provide hot water on the move, with the ability to run the unit while you’re travelling. It’s powered by the proven Autoterm Diesel Liquid Heater, trusted in mission‑critical applications around the world.
ECP Autoterm water heating systems are designed in Melbourne for Australian conditions, tested across the country, and used in vehicles travelling all over the world.
DIESEL HOT WATER SYSTEMS - Reliable Hot Water - Without Gas
Why Choose Diesel Hot Water?
- No gas on-board - No bottles, no compliance issues.
- Fast heat-up - Quicker than gas storage systems.
- Compact & efficient - Saves space while delivering high output.
- Built for Australian conditions - Backed by 18+ years of diesel heating experience.
- Weather-resistant - Reliable in all conditions.
- Multiple outlets - Connect to shower, sink, or outdoor kitchen.
- Safer than gas - No open flames, no leaks.
- Used in - Caravans, Campertrailers, Houseboats, Marine Applications, Diving Applications, RV's, Motorhomes, Mobile Food Service, Tiny Homes.
Why Autoterm?
- Europe's fastest-growing diesel heater brand.
- Trusted by 1700+ companies worldwide.
- Backed by a 3-year warranty.
Why Buy From Us ?
Everything Caravans - Established in 1975, we have over 50 years of experience servicing and supplying RV appliances.
ECP - Our brand, built on decades of knowledge, delivering reliable products designed for Australian conditions
| Controller | Glycol volume | Diesel Operation | Diesel Operation | Diesel Operation | 240 Volt Operation |
| Options | Litres | Time to Shower Temp | Shower Time (Based on 30degree rise) | Reheat Time | Time to Temp |
| Push, Comfort, OELD. | 15 | 14min | 10mins @ 5lpm, 19mins @ 3.5lpm. | 15mins | +30deg 29mins, +50deg 50mins. |
Note: These figures are real world figures based on 20degree ambient (it is not to much different in winter temps) and of course the numbers can be improved - shorter reheat, preheat, longer shower time if tested in summer. We want you to be able to rely on these numbers as the minimum you will achieve.
| 240 Volt Operation | 240 Volt Operation | Power Consumption | Power Consumption | Fuel Consumption |
| Shower Time (Based on 30degree rise) | Reheat Time to Max Temp | 12v | 240v | Diesel |
| 3mins @ 6lpm, 4.5mins @3lpm. (8mins @ 3lpm 25deg Rise). | 47mins | 42w/3.3amp Start Up 122w/9.5amps | 1200w | 0.62l/hr Max |
Operation using Standard Push Control
| HWS Only | Controller Operation | With Fan Matrix | Controller Operation | |
| Blue LED | Turn On (2 hr Run time) | Long First Press to Turn On | Turn On (2 hr Run time) | Long First Press to Turn On |
| Green LED | Temp reached 65 degrees | Auto Change Colour | Temp reached 65 degrees | Auto Change Colour |
| Red LED | Unlimited Run time | Short Press after Turn On | Unlimited Run Time & Turns On Fan Matrix | Short Press after Turn On |
Autoterm ECP Hotwater systems are installed and used by the following Caravan, Camper and Motorhome manufacturers:
Red Centre Caravans | Lotus Caravans | Bushtracker Caravans
Vibe Caravans | Interstate Motorhomes | VanCruiser Caravans
Zone RV | Hilltop Caravans | Wirr-Away Motorhomes
Kimberley Kampers | Vista RV | Goldfield Campers
Wonderland Caravans | Offline Campers | Explorer Motorhomes
Custom Air Group | BruderX | Nova Caravans
Elross Caravans | Halen Vans | Tommy Campers
87RV and many others
If purchasing a new van ask your manufacturer to supply a Autoterm ECP Hotwater system from Everything Caravans.
Praised for its simple, reliable operation and ease of installation.
-
