BS-2702B

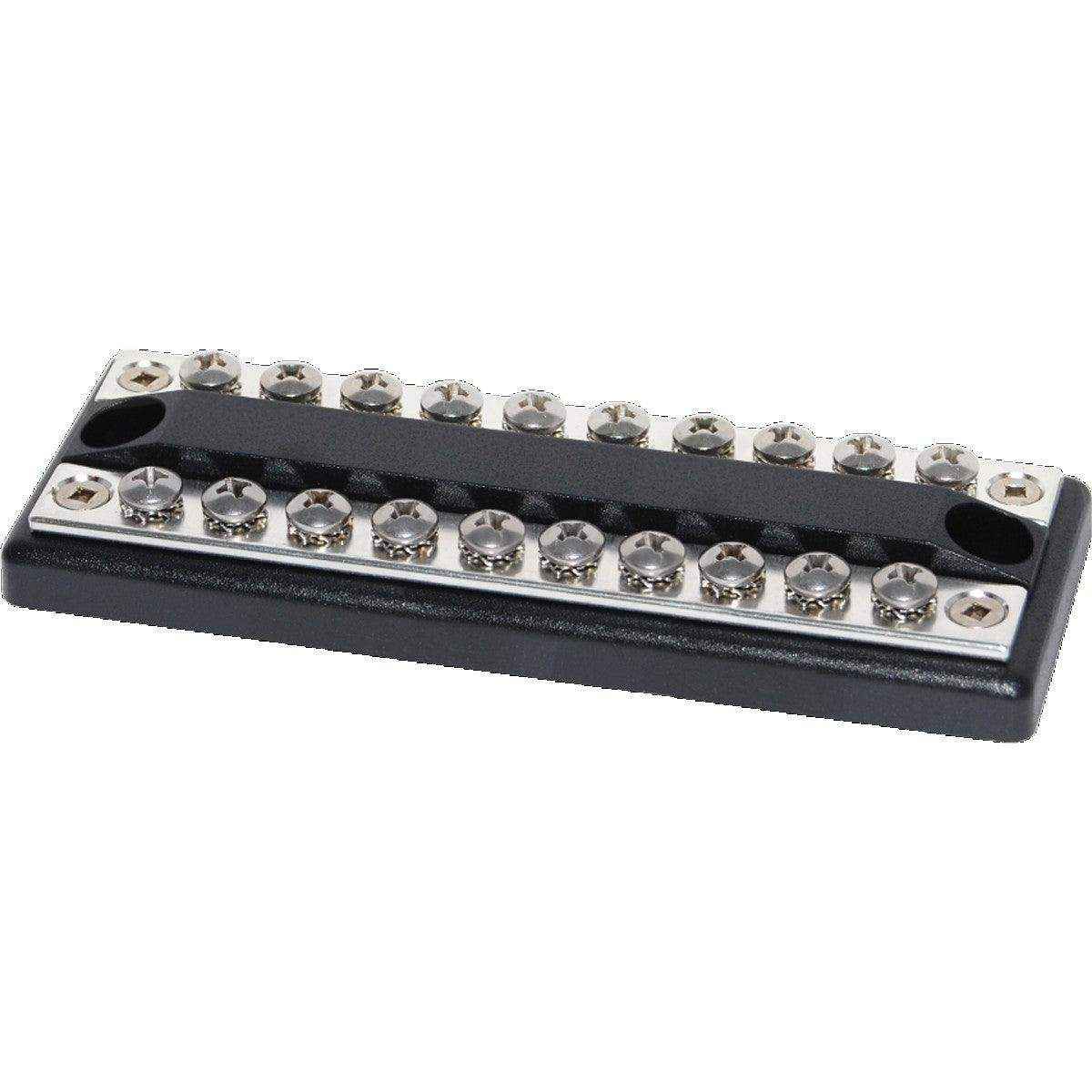

Dual bus 100A Busbar – 10 Circuit

We currently have 2 in stock.
2 items left

DualBus 100A BusBar - 10 Circuit

Key Features:

Combined Buses: The DualBus 100A BusBar combines negative and positive buses on one block.

Capacity and Voltage: Supports up to 100A with a maximum voltage of 300V AC and 48V DC.

Terminals: Features 10 screw terminals per bus, using #8-32 screws.

Material: Made with a durable ABS base and tin-plated copper bus for high conductivity.

Compact Design: Measures 5/8 inch (15.88 mm) in height and weighs 0.14 kg.

DualBus 100A BusBar – 10 Circuit
Maximum Voltage 300V AC 48V DC
Number of Screw Terminals 10 per bus
Terminal Type #8-32 Screw
Continuous Rating 100A
Base Material ABS
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Height 5⁄8 in (15.88 mm)
Weight 0.14 kg
