DCM-5073500

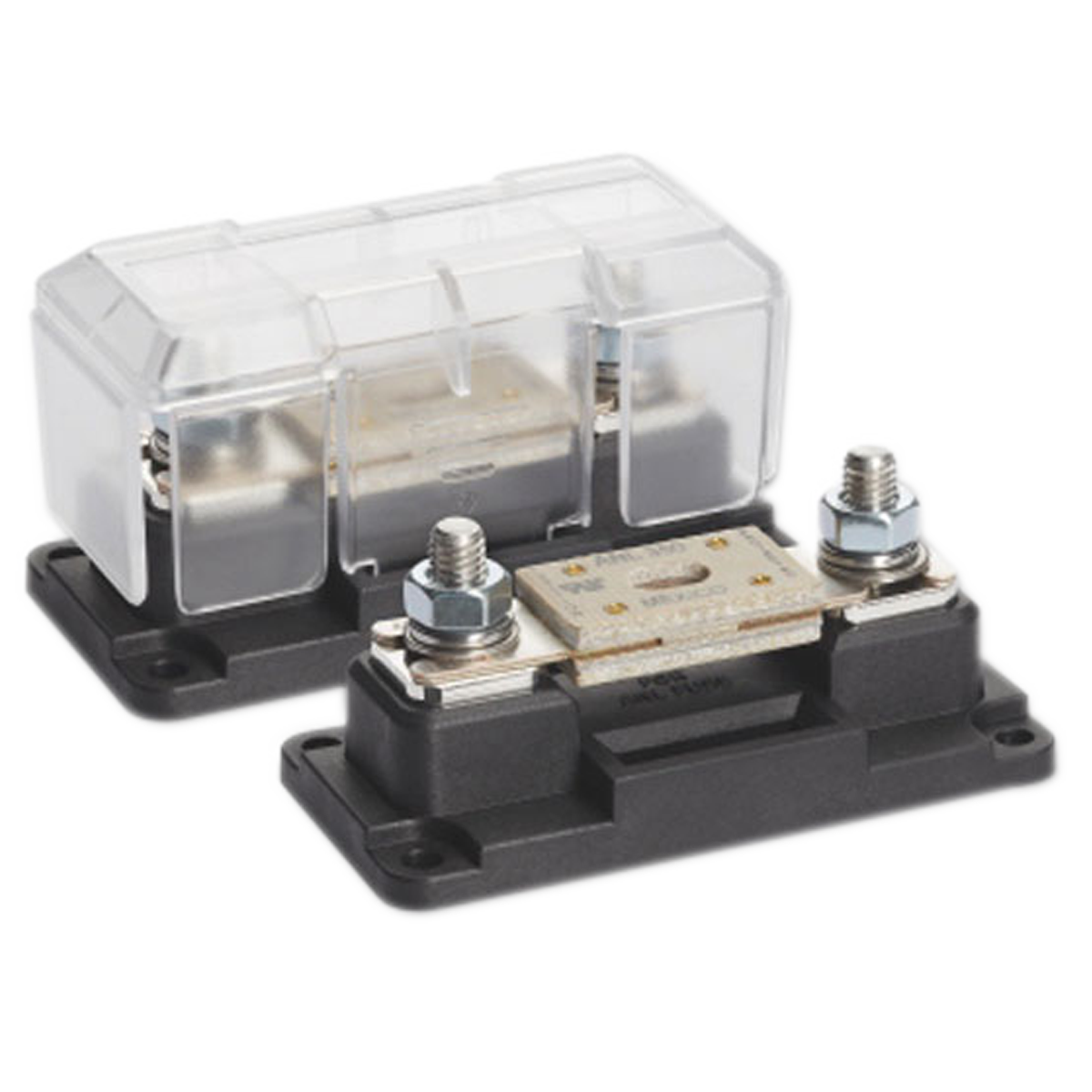

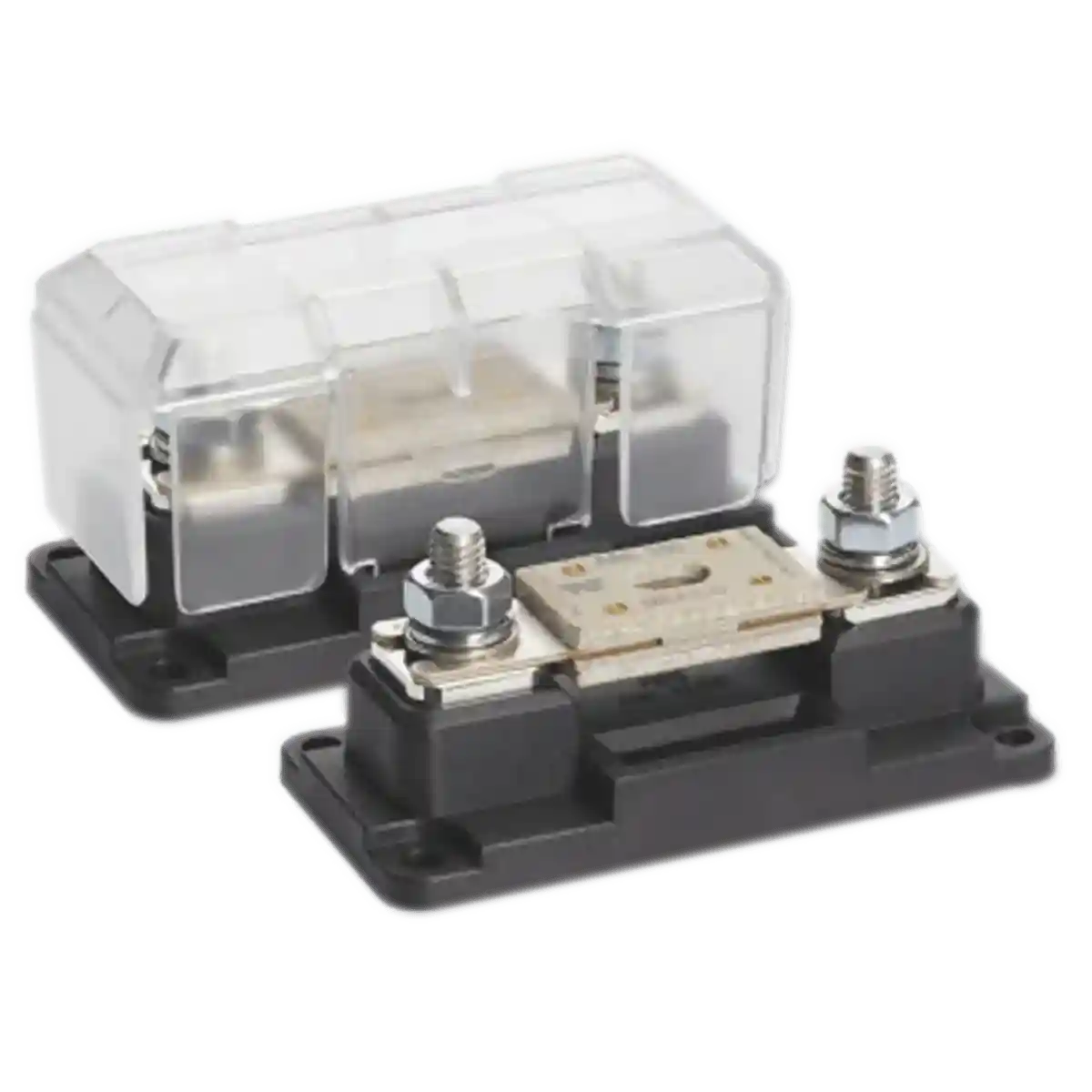

Anl Fuseholder (300A)

We currently have 2 in stock.
2 items left

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members. The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

Specification:

ANL Fuseholder 50V/300A

Model Part No. Grid size1) Fuse range2) Max. Voltage Connection stud size
DCM ANL Fuseholder (300A) DCM-5073500 1 x 23) 35 .. 300A 50V M8


1) Compatible with Littelfuse® ‘CNN’ and ‘CNL’ plus Cooper Bussmann® ‘ANL’ and ‘ANN’ fuses
2) Higher voltages may require additional safety measures
3) The ANL fuseholder has a grid optimized footprint but is not compatible with link- and adapter plates

Feature:

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates (except Mega and ANL (300A) fuseholders)
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections
