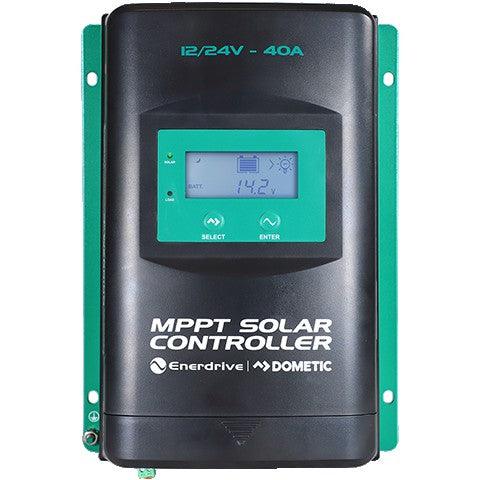

Enerdrive MPPT Solar Controller Solar Regulator - 40amp 12/24V
4 reviews
$299.00$349.00
This product is on order with our supplier (if no add to cart button is available, then we are not confident of the suppliers delivery date)
4 reviews
Key Features:
Advanced MPPT Technology: Utilizes an advanced MPPT control algorithm for quick tracking of the maximum power point (MPP) of the PV array, improving charging by 20%-30% compared to PWM methods.
High Efficiency: Achieves tracking efficiency up to 99.5% and maximum DC/DC transfer efficiency of 98.6%.
Self-Adaptive Three-Stage Charging: Features a digital control circuit that prolongs battery lifespan and enhances system performance.
Comprehensive Protection: Provides electronic protection against overcharge, over-discharge, and reverse polarity for both PV and battery.
Compatibility and Versatility: Supports lead-acid (wet and AGM) and lithium batteries, includes an LCD display for real-time energy statistics, and has multiple load work modes with IP33 ingress protection.
Enerdrive MPPT Solar Controllers utilise an advanced MPPT control algorithm, it can quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; improving charging by 20%-30% compared with PWM charging method.
The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on a digital control circuit, which can prolong the lifespan of batteries and improve the system performance. It also has electronic protection for overcharge, over discharge, PV and battery reverse polarity.
Enerdrive MPPT Solar Controller Features:
LCD display
Advanced MPPT technology and ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
Maximum DC/DC transfer efficiency is as high as 98.6%.
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
Accurate recognition and tracking of multi-peaks maximum power point
Wide MPP operating voltage range
Supports lead-acid (wet and AGM) and lithium batteries
Real-time energy statistics function
Power reduction automatically over temperature value
Multiple load work modes
Comprehensive electronic protection
IP33 Ingress protection
Comms port included for future applications
Model
EN43540
Nominal Voltage Range
12/24VDC Auto Select
Battery Voltage Range
8 - 32V
Maximum Battery Current Output
40A
Maximum Load Current Output
40A
Maximum PV Open Circuit Voltage
100V ≤ 92V ≥
MPPT Voltage Range
(Battery Voltage + 2V) - 72V
Maximum PV Array Power Recommended
600W/12V 1200W/24V
Maximum PV Array Power Allowed (Overdrive)
720W/12V 1440W/24V
Efficiency (Maximum)
98.60%
Self Consumption
=30mA (12V) =16mA (24V)
Temperature Compensate Coeffcient 4
-3mV/∞C/12V (Default)
Grounding
Common Negative
RS485 Interface
5VDC/200mA (RJ45)
LCD Backlight Timeout
Default: 60s, Range,: 0-999S (OS: the backlight is ON all the time)
ENVIRONMENTAL PARAMETERS
Environmental Temperature 5
from - 25 +50
Storage Temperature Range
from - 20 + 70
IP Rating
IP33
MECHANICAL PARAMETERS
Dimensions (mm) LxWxH
255 x 185 x 67.8
Mounting Hole Dimensions (mm)
200 x 176
Mounting Hole Size
5mm
Maximum Cable Size (Connector Input/Output)
6AWG (13.2mmsq)
Recommended Cable Size (Connector Input/Output)
6AWG (13.2mmsq)
