Unit only - needs door or vents and controller to finish install
See our other listings for complete units

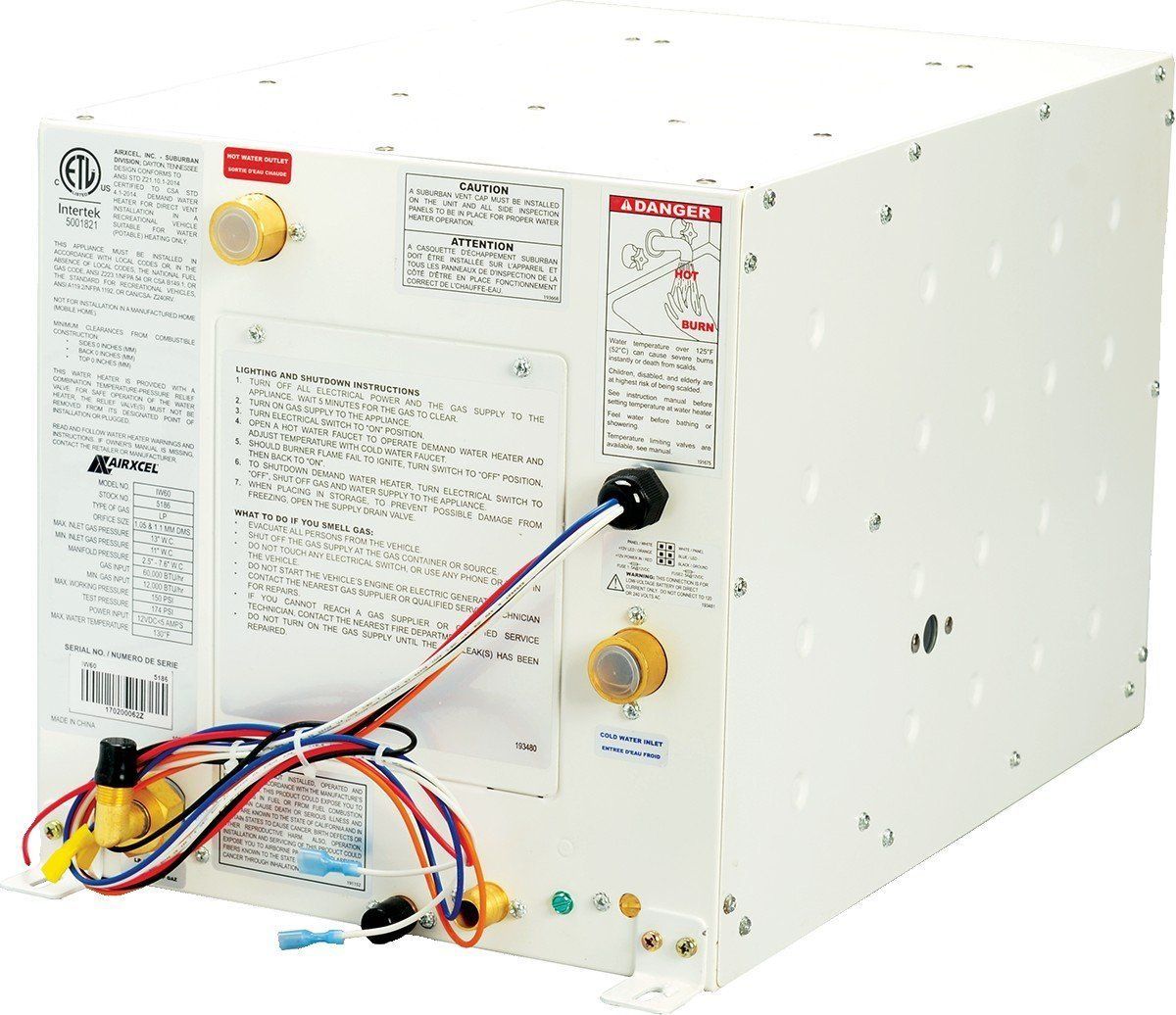

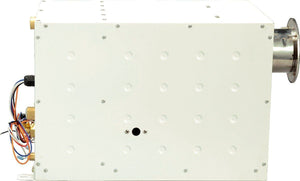

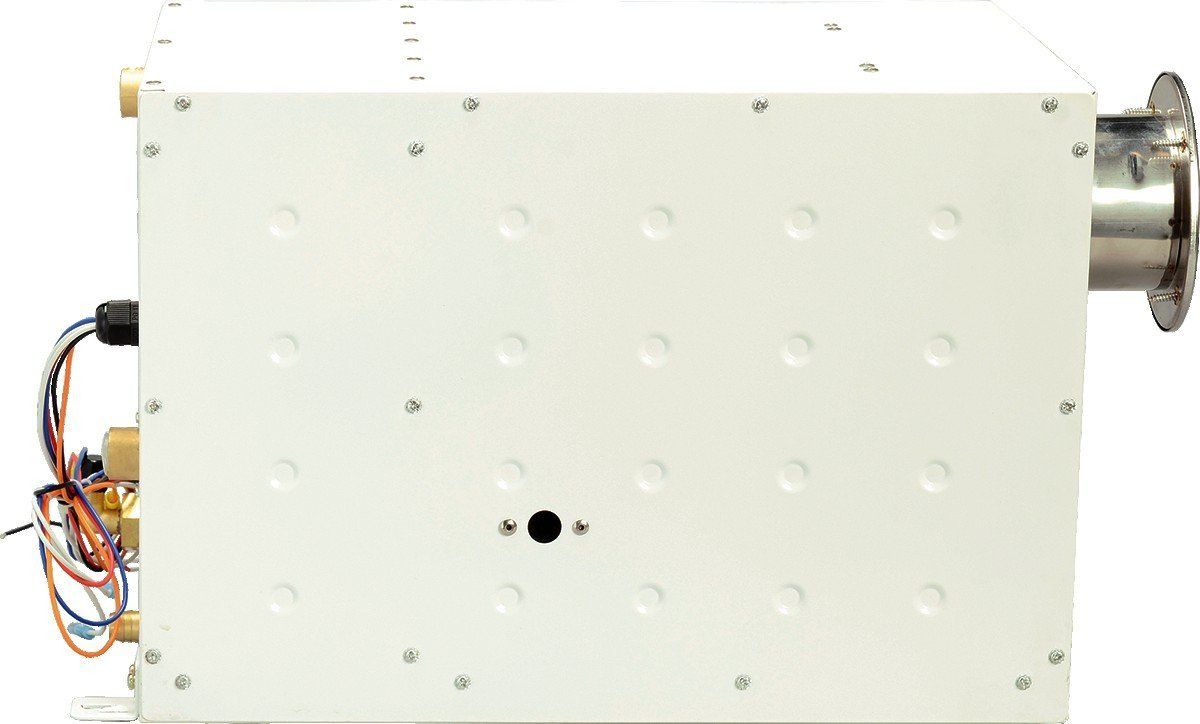

With no storage Hot Water Tank, the NAUTILUS On Demand Hot Water Heater reduces weight and increases efficiency by only operating when you need hot water.
The heater uses an exclusive 60,000 BTU 2-Stage Modulating Combustion System which instantly adjusts the LP gas input to provide consistent and endless hot water.
Suburban’s NAUTILUS On Demand Water Heater:
Exclusive 60,000 BTU Two-Stage Self Modulating Combustion System
Built-In Freeze Protection
Only 16.3kg Installed (including optional accessories)
Two-Year Warranty
Unmatched installation flexibility

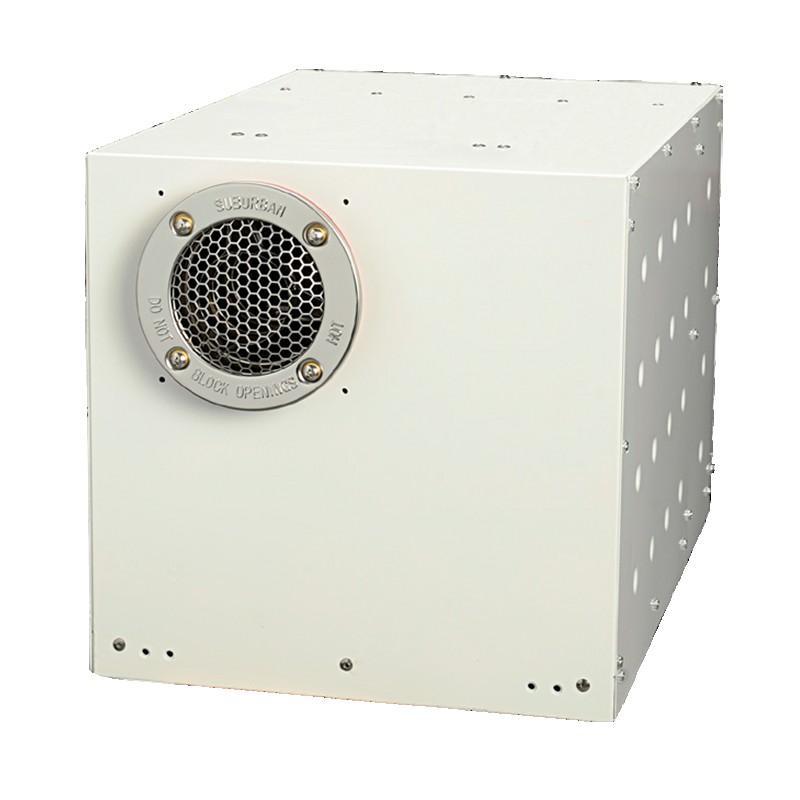

Small vent cap only to minimize penetration through the side of the RV
The 2-Stage Modulating Combustion System and microprocessor Monitors:
Inlet water temperature
Inlet water flow
Output water temperature
Combustion air fan speed
Heat exchanger and burner operation
PERFORMANCE SPECS
SUBURBAN NAUTILUS
MODEL
Nautilus IW60A, 5187A
MAXIMUM MJ/hr
64 (5) burners
TWO-STAGE
Self Modulating Combustion System
YES
Stage 1 Operation: 2 Burners
Stage 2 Operation: 5 Burners
Fuel Source
Universal LP Gas
Dry Weight
15 kg with vent assembly
Optional access panel 2.3 Kg shipping weight
12 VDC = AMPS
2.1 AMPS
Operational Voltage Range
10.2 - 14.5 VDC
MAXIMUM Output Water Temperature
50°C
Output Water Temperature - Factory Setting
50°C
Digital Control Center Temperature Range
35° - 50° (C)
Liters Per Minute (LPM) Required Flow
1.9 LPM
Freeze Protection
Standard
Warranty
2 - Year
Product Dimensions
316.6 mm W x 317.8 mm H x 464.9 mm D
(includes inlet and discharge water lines)
950-03000
