EN61001

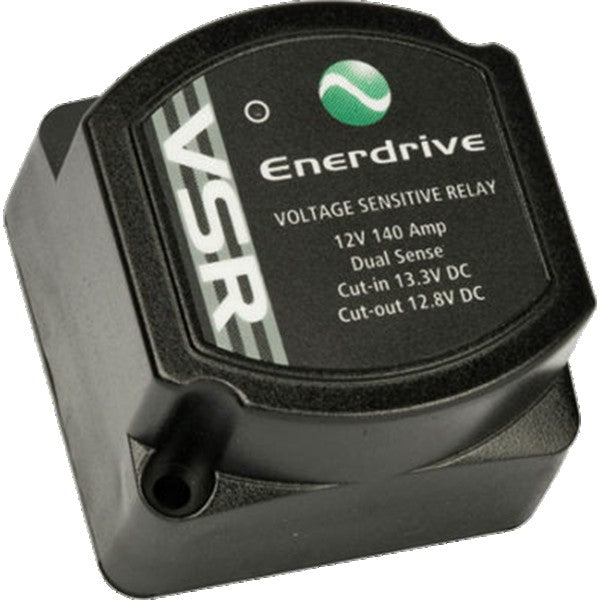

Voltage Sensitive Relay 140A 12v Enerdrive

This product is on order with our supplier (if no add to cart button is available, then we are not confident of the suppliers delivery date)

Voltage Sensitve Relay 12v 140amp

Key Features:

  • Product Description: Enerdrive Voltage Sensitive Relay (VSR) 12V 140A
  • Set Points: Activates at 13.3VDC and deactivates at 12.8VDC.
  • High Capacity: Supports up to 140 amps of current.
  • Dual Voltage Sensing: Allows for bi-directional charging by sensing voltage from both the starting and auxiliary batteries.
  • Operation: Separates starting and auxiliary batteries during engine running, charging the starting battery first. Connects both batteries when charge voltage reaches 13.3V, and disconnects them when it drops below 12.8V, preventing the auxiliary battery from draining the starting battery.
  • Indicator: Red light illuminates in the top left corner when the relay is activated.

Enerdrive's VSR 140A 12v Voltage Sensitive Relay has a set point of 13.3vdc for connection and 12.8vdc for disconnection.

This VSR has the capacity for 140amps of current and dual voltage sensing capabilities for bi-directional charging. When the engine is running, the starting and auxiliary batteries are separated, allowing the starting battery to be charged. As charge voltage reaches 13.3 volts, the relay is activated, connecting both batteries and illuminating the red light in the top left corner. When the voltage drops below 12.8vdc, the relay deactivates, separating the batteries and preventing the auxiliary battery from draining the starting battery.

"Dual Sensing" allows the VSR to sense voltage from both batteries and charge them accordingly.
